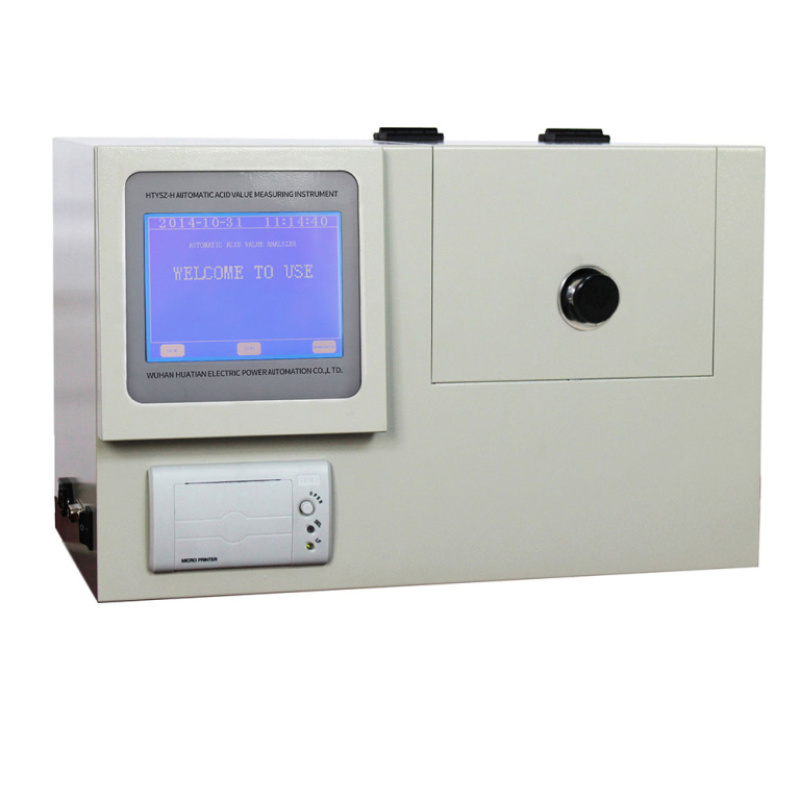

Automatic Acid Value Tester

In stock
Engine Oil Petroleum Products Oil Acid Value Tester


Lead Time: 4-6 Weeks
SKU: HTYSZ-H Category:



Engine Oil Petroleum Products Oil Acid Value Tester


Lead Time: 4-6 Weeks

Product overview

In power system and industrial and mining enterprises have a lot of oil filled electrical equipment, transformer oil, and the acid value of turbine oil is a regular inspection items shall be measured. Insulation oleic acid value automatic tester used in transformer oil, turbine oleic acid determination instrument, adopt computer control, automatic electrical, optical, mechanical and chemical integration design, completely replaces manual operation, raised the working efficiency, reduces the labor intensity of workers, minimize the organic solvents and chemicals to the harm of human body. The operation is simple, easy to use, strong anti-interference ability, stable and reliable.

Products features

1, using 320 x240 graphic dot matrix liquid crystal display screen, full screen, touch keys, friendly man-machine interface;

2, using neutralization titration principle, use microcomputer to control automatically add liquid at room temperature, and titration, stirring, judge titration end point, LCD screen display and can print test results.

3, color sensor coordinate titration end point detection, the judgment of end conditions is reliable.

4 don’t need to waste liquor cup.

5 extract and neutralization liquid by a peristaltic pump control, high measuring accuracy.

6, history inquiry, instruments and automatic memory function, with the result of the experiment time automatic storage of record, and is not lost the data after power off, can be stored for more than 10 years, for later queries to print.

7 calendar clock, temperature compensation, as accurate, record the date and time, determination in power to run more than 10 years;

8, with special reagent bottle holding extract and neutralization liquid, reagent in use process not exposed to air, avoid the influence of solvent evaporation and CO2 in the air; Users don’t have to hand contact with solvents, reducing the organic solvents and chemicals to the harm of human body.

9, the equipment is simple operation, using large screen LCD and Chinese menu options, users only need to choose the menu function, according to the relevant data of the screen prompts, the instrument can automatically complete the determination of acid value.

10, the tester still can choose according to need only one sample or continuous measurement of 2-6 samples.

11, convenient communication with the computer with RS232 interface

12, micro printer, thermal makes printing more beautiful and more quickly, with offline print function.

Technique parameters

Power supply


Determination of acid value range


The minimum resolution

0.0001 mgKOH/g


Acid value 0.001~0.1000 mgKOH/g, allowed error range: 0.02 mgKOH/g

Acid value 0.1000~0.5000 mgKOH/g, allowed error range: 0.05 mgKOH/g


420×270×260 (mm)



Relative humidity

<85% RH


About 9Kg


Additional information

Weight 9 kg
Dimensions 45 × 30 × 35 cm
