Autoclave Flip Open Top Loading
Autoclave Vertical Top Loading
Lead Time: 4-6 Weeks

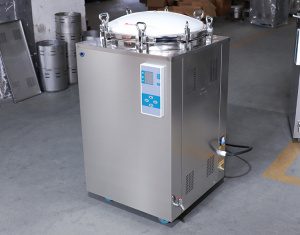

Autoclave Flip Open Top Loading
Vertical Autoclave is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.
- Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying run automatically.
- LED screen displays all steps of full process as well as error codes.
- Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
- Adopting certain temperature (98~102℃)exhaust method and dynamic pulse exhaust method to completely empty the cold air inside chamber for ensuring steam saturability.
- Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
- Inner stainless steel water tank for water and steam to circulate inside.
- Steam does not exhaust during sterilization, so as to keep the outside clean and dry.
- Independent knock-down service window, easy for repairing and maintenance.
- Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
- Autoclave Vertical Steriliser Top Loading
|
Model
|
BKQ-Z30I
|
BKQ-Z50I
|
BKQ-Z75I
|
BKQ-Z100I
|
|
Capacity
|
30L
|
50L
|
75L
|
100L
|
|
Chamber size(Φ*L)
|
385*412 mm
|
385*515 mm
|
385*715 mm
|
385*915 mm
|
|
Chamber material
|
Polished SUS304 medical stainless steel
|
|||
|
Max pressure
|
0.3MPa
|
|||
|
Rated working pressure
|
0.22MPa
|
|||
|
Max temperature
|
150℃
|
|||
|
Working temp range
|
105~134℃
|
|||
|
Temp. accuracy
|
±0.1℃
|
|||
|
Timing range
|
0-999min
|
|||
|
Dynamic pulse exhaust time
|
0~9times
|
|||
|
Water requirement
|
Distilled water or demineralized water
|
|||
|
Standard Accessories
|
Stainless steel basket*1pc
|
Stainless steel basket*2pcs
|
||
|
Power consumption
|
2.8KW
|
3KW
|
3.5KW
|
4.5KW
|
|
Power supply
|
220V, 50/60Hz
|
|||
|
Chambersize(φ*H)
|
385*412mm
|
385*515mm
|
385*715mm
|
385*915mm
|
|
Outer size(W*D*H)
|
610*645*710mm
|
610*645*850mm
|
610*645*1000mm
|
610*645*1200mm
|
|
Net weight
|
68kg
|
75 kg
|
85 kg
|
100 kg
|
- AAutoclave Flip Open Top Loading 3
